LSST Camera Footprint Filter Demo
This notebook demonstrates the LSST camera footprint filter for LSST opsim based survey simulations (http://astro-lsst-01.astro.washington.edu:8080/) and the output of the JPL based solar system object survey simulator (https://github.com/dirac-institute/survey_simulator).
[1]:
from sorcha.modules import PPFootprintFilter as fp
[2]:
import pandas as pd
import sqlite3 as sql
import matplotlib.pyplot as plt
import numpy as np
import os
[3]:
def getSqlData(database,rows_start,nrows):
"""Import dataset from local SQL database
Parameters:
-----------
database ... path to database
rows_start ... number of row to start
rows_max ... number of rows to select
Returns:
--------
observations ... pandas dataframe containing observations from JPL database
"""
con = sql.connect(database)
observations = pd.read_sql("""SELECT observationId, observationStartMJD as observationStartMJD_TAI, visitTime, visitExposureTime, filter, seeingFwhmGeom as seeingFwhmGeom_arcsec, seeingFwhmEff as seeingFwhmEff_arcsec, fiveSigmaDepth as fieldFiveSigmaDepth_mag , fieldRA as fieldRA_deg, fieldDec as fieldDec_deg, rotSkyPos as fieldRotSkyPos_deg FROM observations order by observationId LIMIT """+str(rows_start)+','+str(nrows), con)
return observations
Import LSST Opsim database
This database contains LSST pointings and environmental information such as seeing.
[4]:
db_path = "oneline_v2.0.db"
Select the first ten exposures of the LSST survey for testing purposes.
[5]:
LSSTdf = getSqlData(db_path,0,1)
[6]:
LSSTdf
[6]:
| observationId | observationStartMJD_TAI | visitTime | visitExposureTime | filter | seeingFwhmGeom_arcsec | seeingFwhmEff_arcsec | fieldFiveSigmaDepth_mag | fieldRA_deg | fieldDec_deg | fieldRotSkyPos_deg | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 402942 | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
Grab simulated observations
[7]:
dfobs = pd.read_csv("footprintFilterValidationObservations.csv", sep='\s+')
[8]:
dfobs
[8]:
| ObjID | FieldID | fieldMJD_TAI | Range_LTC_km | RangeRate_LTC_km_s | RA_deg | RARateCosDec_deg_day | Dec_deg | DecRate_deg_day | Obj_Sun_x_LTC_km | ... | Obj_Sun_vz_LTC_km_s | Obs_Sun_x_km | Obs_Sun_y_km | Obs_Sun_z_km | Obs_Sun_vx_km_s | Obs_Sun_vy_km_s | Obs_Sun_vz_km_s | phase_deg | V | V(H=0) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | S0000w6ca | 402942.0 | 60945.035513 | 344266000.0 | 9.645862 | 273.950475 | 0.145419 | -25.409570 | -0.034414 | 171050400.0 | ... | 5.477871 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 23.579048 | 28.916485 | 4.915485 |
| 1 | S0000wkZa | 402942.0 | 60945.035513 | 93728970.0 | 24.810874 | 273.029493 | 1.592210 | -24.398177 | -0.243588 | 154138100.0 | ... | -2.670822 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 58.765271 | 25.451943 | 1.441943 |
| 2 | S0000wspa | 402942.0 | 60945.035513 | 330569600.0 | 21.915557 | 274.480023 | 0.072605 | -25.283050 | 0.093505 | 172974700.0 | ... | 8.064873 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 24.363095 | 28.799210 | 4.784210 |
| 3 | S0000wUea | 402942.0 | 60945.035513 | 492613400.0 | 25.078801 | 273.646543 | 0.109090 | -25.456436 | 0.005462 | 177915900.0 | ... | 1.489699 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 16.976109 | 30.199404 | 6.167404 |
| 4 | S0000xl3a | 402942.0 | 60945.035513 | 200278800.0 | 30.796080 | 271.853254 | 0.734379 | -23.453650 | -0.003425 | 155568800.0 | ... | -0.605902 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 37.584025 | 27.273330 | 3.225330 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 29051 | mpc00K8271 | 402942.0 | 60945.035513 | 360725700.0 | 20.617454 | 272.594036 | 0.244908 | -25.480627 | 0.015066 | 164365000.0 | ... | 3.899935 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 22.787741 | 22.312084 | 5.062084 |
| 29052 | mpc00K9056 | 402942.0 | 60945.035513 | 261587100.0 | 16.465273 | 272.172454 | 0.412457 | -25.517282 | 0.032230 | 158575700.0 | ... | 6.222693 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 30.279516 | 21.032581 | 4.012581 |
| 29053 | mpc00K9551 | 402942.0 | 60945.035513 | 298658200.0 | 16.740250 | 274.477149 | 0.288844 | -26.376947 | 0.009252 | 170513400.0 | ... | 4.841374 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 26.624500 | 21.221274 | 4.451274 |
| 29054 | mpc00K9617 | 402942.0 | 60945.035513 | 371087000.0 | 21.670828 | 272.019401 | 0.241333 | -24.188684 | 0.022293 | 161555100.0 | ... | 4.423580 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 22.274549 | 22.124108 | 5.154108 |
| 29055 | mpc00K9664 | 402942.0 | 60945.035513 | 252349900.0 | 18.731995 | 275.385502 | 0.430778 | -25.443011 | 0.025301 | 171014400.0 | ... | 4.895786 | 149626900.0 | 9189664.0 | 3981839.0 | -2.165552 | 27.419133 | 11.778333 | 30.449283 | 20.619203 | 3.929203 |
29056 rows × 24 columns

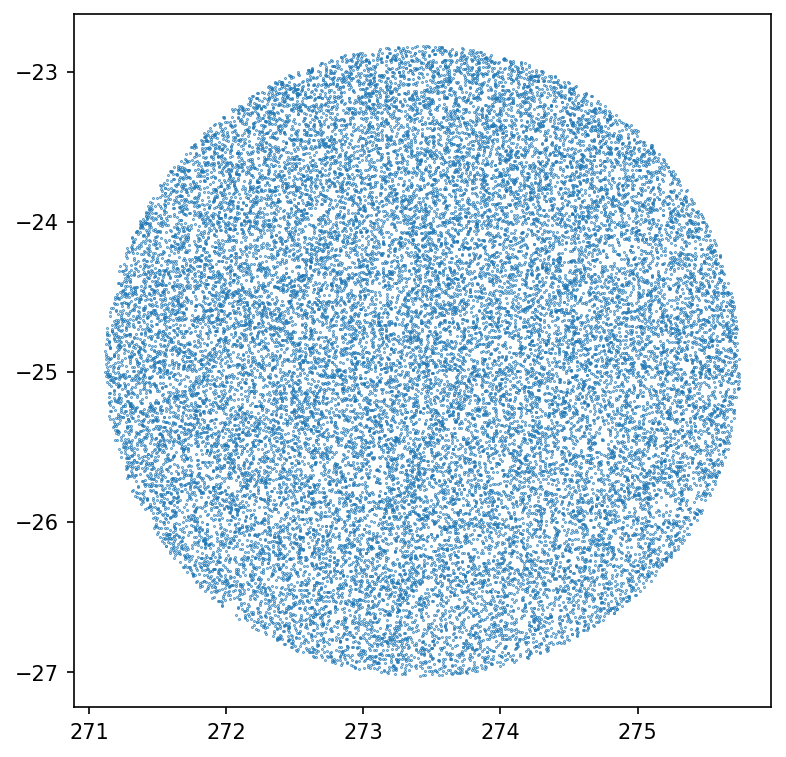

These observations all lie on a circle of radius 2.1deg.
[9]:
plt.figure(dpi=150,figsize=(6,6))
plt.scatter(dfobs['RA_deg'],dfobs['Dec_deg'],s=0.1)
plt.show()
[10]:
dfobs = pd.merge(dfobs, LSSTdf, left_on="FieldID", right_on="observationId", how="left")
Test footprint filter
[11]:
camera = fp.Footprint("detectors_corners.csv")
[12]:
df_new=camera.applyFootprint(dfobs)
[13]:
dfobs_in_fp = dfobs.iloc[df_new[0]]
[14]:
dfobs_in_fp
[14]:
| ObjID | FieldID | fieldMJD_TAI | Range_LTC_km | RangeRate_LTC_km_s | RA_deg | RARateCosDec_deg_day | Dec_deg | DecRate_deg_day | Obj_Sun_x_LTC_km | ... | observationStartMJD_TAI | visitTime | visitExposureTime | filter | seeingFwhmGeom_arcsec | seeingFwhmEff_arcsec | fieldFiveSigmaDepth_mag | fieldRA_deg | fieldDec_deg | fieldRotSkyPos_deg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 179 | S0000q8ya | 402942.0 | 60945.035513 | 645524200.0 | 24.379078 | 274.566279 | 0.069791 | -23.375062 | 0.006906 | 196800700.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 319 | S1002xOAa | 402942.0 | 60945.035513 | 309507200.0 | 22.316682 | 274.553794 | 0.308324 | -23.375576 | 0.002182 | 172183400.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 448 | S1006IoOa | 402942.0 | 60945.035513 | 317372700.0 | 19.818773 | 274.444716 | 0.272782 | -23.345640 | -0.018433 | 172208800.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 1161 | S1006CoAa | 402942.0 | 60945.035513 | 405985200.0 | 24.486111 | 274.629029 | 0.213648 | -23.424159 | 0.014735 | 179691300.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 1736 | S1002O9Wa | 402942.0 | 60945.035513 | 470152700.0 | 25.044227 | 274.485399 | 0.165346 | -23.357628 | -0.000903 | 183382000.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 27016 | mpcK05UW7M | 402942.0 | 60945.035513 | 357074600.0 | 20.771910 | 272.359010 | 0.248174 | -26.435455 | 0.024911 | 162787600.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 27076 | mpc00j0095 | 402942.0 | 60945.035513 | 427346800.0 | 22.743362 | 272.281297 | 0.216616 | -26.621139 | 0.052508 | 164834400.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 27807 | mpcK13H82Y | 402942.0 | 60945.035513 | 339520500.0 | 24.460666 | 272.228432 | 0.316503 | -26.571824 | 0.028112 | 161434300.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 28776 | mpcK11S43J | 402942.0 | 60945.035513 | 433168100.0 | 21.567661 | 272.196490 | 0.199829 | -26.603929 | 0.027425 | 164471000.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
| 28970 | mpcK15D89G | 402942.0 | 60945.035513 | 418689200.0 | 23.924742 | 272.224720 | 0.217732 | -26.573478 | 0.023979 | 164163000.0 | ... | 60945.035513 | 34.0 | 30.0 | r | 0.750259 | 0.849464 | 24.071162 | 273.428988 | -24.927018 | 182.732823 |
19942 rows × 35 columns
[15]:

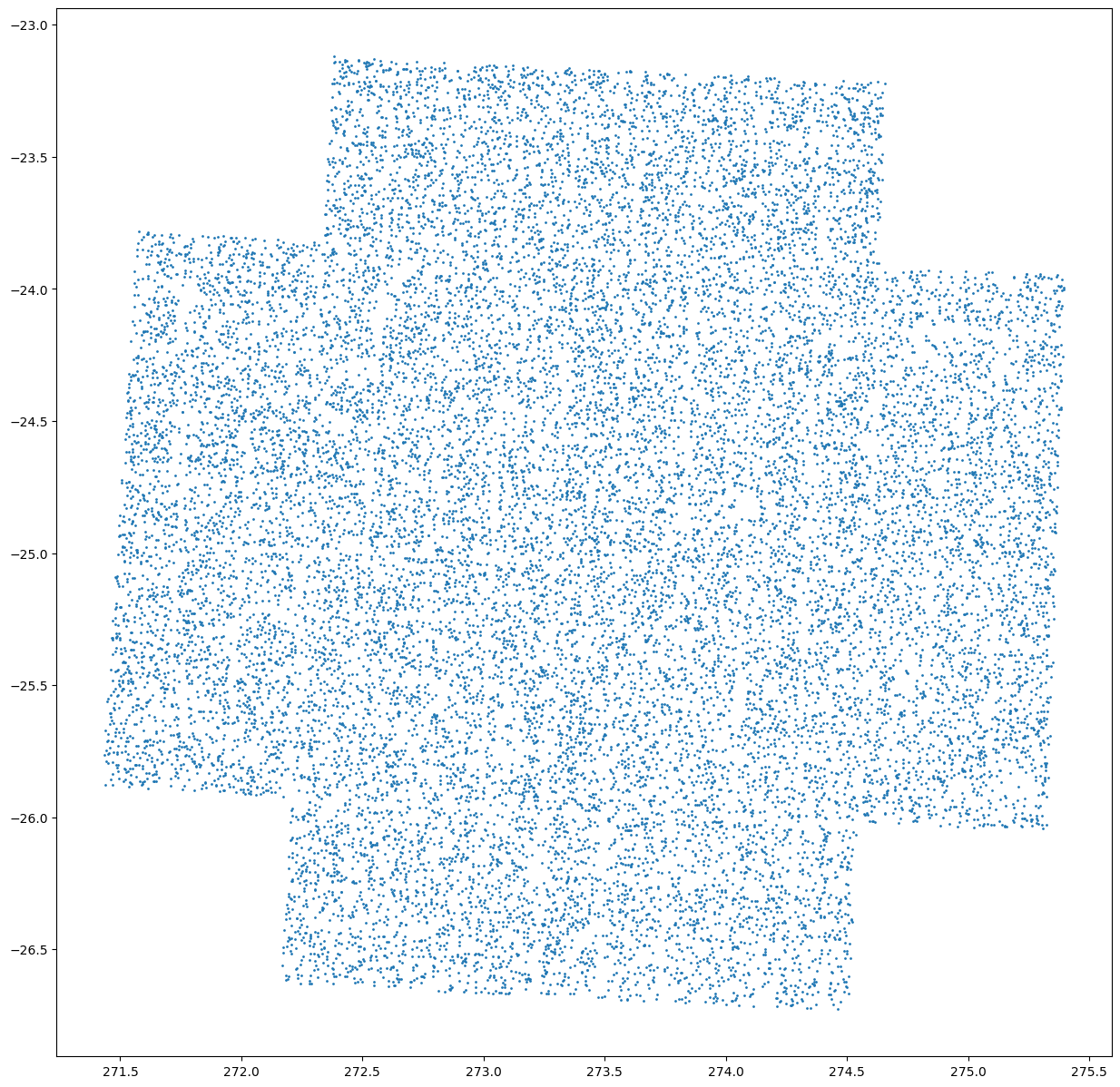

plt.figure(figsize=(15, 15))
plt.scatter(dfobs_in_fp['RA_deg'],dfobs_in_fp['Dec_deg'],s=1.)
plt.show()
