LSST Camera Field-of-View and other Sorcha

import pandas as pd
import numpy as np
from matplotlib import pyplot as plt
from matplotlib.patches import Circle

The aim of this notebook is to show the various on-sky radii used in Sorcha and show them in comparison to the the LSST Camera (LSSTCam) field-of-view (FOV) and detector schematics.

First let’s read in the default internal LSST detector configuration file provided within Sorcha

df = pd.read_csv('../../src/sorcha/modules/data/LSST_detector_corners_100123.csv')

The file has the corners of each CCD within the LSSTCam.

chips = df['detector'].unique() # getting the list of detector IDs

Loop through the CCD detectors and plot the corners of the LSSTCam plus the Assist+Rebound Ephemeris search radius + buffer, 2.06 degree radius circle (the full radius circle for LSSTCam FOV), and 1.75 degee radius cirle (contains 90% of the LSSTCam FOV).

f =plt.figure()
ax = f.add_subplot(111)
for CCD in chips:
    w=df['detector'] ==CCD
    corners=df[w].copy()
    plt.fill(corners['x']*180/3.14, corners['y']*180/3.14, fc='#0fea72')

circle1=Circle((0, 0), radius=2.06, edgecolor="blue", fc='none', linewidth=1.0, linestyle='dashdot')
ax.add_patch(circle1)
circle2=Circle((0, 0), radius=1.75, edgecolor="#ea0f87", fc='none', linewidth=1.0)
ax.add_patch(circle2)
circle3=Circle((0, 0), radius= 2.06+0.2, edgecolor="#999999", fc='none', linestyle='--', linewidth=1.5)
ax.add_patch(circle3)


plt.gca().set_aspect("equal")


plt.xlabel("X Pupil (Degrees)")
plt.ylabel("Y Pupil (Degrees)")

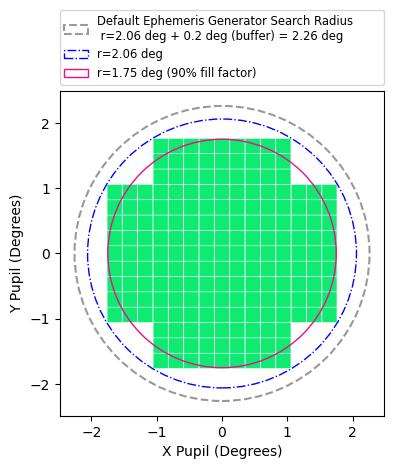

plt.legend([circle3,circle1,circle2], ["Default Ephemeris Generator Search Radius \n r=2.06 deg + 0.2 deg (buffer) = 2.26 deg","r=2.06 deg", "r=1.75 deg (90% fill factor)"], bbox_to_anchor=(0., 1.02, 1., .102), loc='lower left',
                      ncols=1, mode="expand", borderaxespad=0, fontsize='small', fancybox=True)
plt.tight_layout()
#plt.savefig("sorcha_fovs.pdf")
plt.show()
